Product Datasheet Search Results:

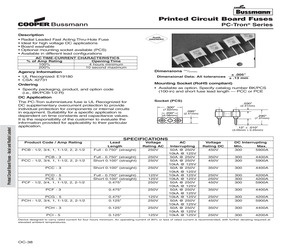

TR/PCD-5-R.pdf2 Pages, 309 KB, Original
TR/PCD-5-R
Cooper Bussmann
FUSE 5A 125V FAST PC-TRON - TR/PCD-5-R
TR/PCD-5-R.pdf3 Pages, 140 KB, Original
TR/PCD-5-R
Bussmann / Eaton
Fuses with Leads (Through Hole) PC TRON - ROHS
TR/PCD-5-R.pdf2 Pages, 1235 KB, Original
TR/PCD-5-R
Eaton
Fuse Subminiature Fast Acting 5A 125V Radial 8.89 X 4.67 X 8.76mm T/R CSA/UL

Product Details Search Results:

Cooperbussmann.com/TR/PCD-5-R
{"Status":"ACTIVE","Lead Free":"Yes","Terminal Finish":"NOT SPECIFIED","Mfr Package Description":"ROHS COMPLIANT","Body Height":"8.77 mm","Body Length or Diameter":"8.89 mm","Rated Current":"5 A","Rated Voltage(DC)":"250 V","Electric Fuse Type":"ELECTRIC FUSE","Mounting Feature":"THROUGH HOLE","Rated Breaking Capacity":"10000 V","Terminal Shape":"PIN WIRE","Rated Voltage(AC)":"125 V","Manufacturer Series":"PC-TRON","EU RoHS Compliant":"Yes","Joule-integral-Nom":"5 J","Blow Characteristic":"FAST"}...
1265 Bytes - 16:47:39, 02 November 2024
Cooperindustries.com/TR/PCD-5-R
{"Category":"Circuit Protection","Current Rating":"5A","Voltage Rating - AC":"125V","Breaking Capacity @ Rated Voltage":"10kA AC, 4.2kA DC","Operating Temperature":"-","Package / Case":"Radial, Box","Product Photos":"PCB, PCD Series","Approvals":"CSA, UL","Melting I\u00b2t":"5","Datasheets":"PC-TRON Series","DC Cold Resistance":"-","Standard Package":"500","Response Time":"Fast","Size / Dimension":"0.350\" L x 0.184\" W x 0.345\" H (8.89mm x 4.67mm x 8.76mm)","Associated Product":"283-2356-ND - FUSE HOLDER ...
1760 Bytes - 16:47:39, 02 November 2024
Eaton.com/TR/PCD-5-R
{"Current Rating":"5(A)","Voltage Rating (VDC)":"400(V)","Voltage Rating":"125","Mounting":"Through Hole","Product Height (mm)":"8.76(mm)","Fuse Size":"8.89 X 4.67 X 8.76","Termination Style":"Radial","Operating Temp Range":"-55C to 125C","Terminal Pitch (mm)":"5.08(mm)","Product Length (mm)":"8.89(mm)","Packaging":"Tape and Reel","Operating Temperature Classification":"Military","Rad Hardened":"No","Product Depth (mm)":"4.67(mm)","Product Diameter (mm)":"Not Required(mm)","Seated Plane Height":"8.76(mm)","...
1660 Bytes - 16:47:39, 02 November 2024
