VN808CM-E Octal channel high side driver Features Type RDS(on) Iout VCC VN808CM-E 160 m 0.7 A 45 V CMOS compatible input Junction overtemperature protection Case overtemperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shutdown Protection against loss of ground Very low standby current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. It can be driven by using a 3.3 V logic supply. February 2010 PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and wi

VN808CM-E Octal channel high side driver Features Type RDS(on) Iout VCC VN808CM-E 160 m 0.7 A 45 V CMOS compatible input Junction overtemperature protection Case overtemperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shutdown Protection against loss of ground Very low standby current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. It can be driven by using a 3.3 V logic supply. September 2009 PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and w

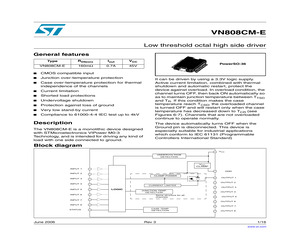

VN808CM-E LOW THRESHOLD OCTAL HIGH SIDE DRIVER General Features Type RDS(on) Iout VCC VN808CM-E 160m 0.7A 45V PowerSO-36 CMOS COMPATIBLE INPUT JUNCTION OVER-TEMPERATURE PROTECTION CASE OVER-TEMPERATURE PROTECTION FOR THERMAL INDEPENDENCE OF THE CHANNELS CURRENT LIMITATION SHORTED LOAD PROTECTIONS UNDERVOLTAGE SHUTDOWN PROTECTION AGAINST LOSS OF GROUND VERY LOW STAND-BY CURRENT COMPLIANCE TO 61000-4-4 IEC TEST UP TO 4KV Description The VN808CM-E is a monolithic device designed with STMicroelectronics VIPower M0-3 Technology, and is intended for driving any kind of load with one side connected to ground. It can be driven by using a 3.3V logic supply. Active current limitation, combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, the channel turns OFF, then back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes the case temperature reach TCSD, the overloaded chann

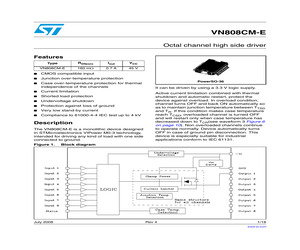

VN808CM-E Octal channel high-side driver Datasheet - production data * Protection against loss of ground * Very low standby current * Compliance to 61000-4-4 IEC test up to 4 kV Description PowerSO-36 Features Type RDS(on) IOUT VCC VN808CM-E 160 m 0.7 A 45 V * CMOS compatible input * Junction overtemperature protection * Case overtemperature protection for thermal independence of the channels * Current limitation * Shorted load protection * Undervoltage shutdown The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. It can be driven by using a 3.3 V logic supply. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload conditions, the channel turns OFF and ON again automatically so to maintain the junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, ove

VN808CM-E Octal channel high-side driver Datasheet - production data * Protection against loss of ground * Very low standby current * Compliance to 61000-4-4 IEC test up to 4 kV Description PowerSO-36 Features Type RDS(on) IOUT VCC VN808CM-E 160 m 0.7 A 45 V * CMOS compatible input * Junction overtemperature protection * Case overtemperature protection for thermal independence of the channels * Current limitation * Shorted load protection * Undervoltage shutdown The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. It can be driven by using a 3.3 V logic supply. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload conditions, the channel turns OFF and ON again automatically so to maintain the junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, ove

VN808CM-E Octal channel high-side driver Datasheet - production data * Protection against loss of ground * Very low standby current * Compliance to 61000-4-4 IEC test up to 4 kV Description PowerSO-36 Features Type RDS(on) IOUT VCC VN808CM-E 160 m 0.7 A 45 V * CMOS compatible input * Junction overtemperature protection * Case overtemperature protection for thermal independence of the channels * Current limitation * Shorted load protection * Undervoltage shutdown The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. It can be driven by using a 3.3 V logic supply. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload conditions, the channel turns OFF and ON again automatically so to maintain the junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, ove

VN808CM-E Octal channel high side driver Features Type RDS(on) Iout VCC VN808CM-E 160 m 0.7 A 45 V CMOS compatible input Junction over-temperature protection Case over-temperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shutdown Protection against loss of ground Very low stand-by current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. Figure 1. August 2008 PowerSO-36 It can be driven by using a 3.3 V logic supply. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned

VN808CM-E Octal channel high side driver Features Type RDS(on) Iout VCC VN808CM-E 150 m 1A 45 V VCC/2 compatible input Junction overtemperature protection Case overtemperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shutdown Protection against loss of ground Very low standby current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. August 2009 PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and will restart only when case temperature has decreased

VN808CM-E Octal channel high side driver Features Type RDS(on) Iout VCC VN808CM-E 160 m 0.7 A 45 V CMOS compatible input Junction over-temperature protection Case over-temperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shutdown Protection against loss of ground Very low stand-by current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. Figure 1. July 2008 PowerSO-36 It can be driven by using a 3.3 V logic supply. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned O

VN808CM-E Low threshold octal high side driver General features Type RDS(on) Iout VCC VN808CM-E 160m 0.7A 45V CMOS compatible input Junction over-temperature protection Case over-temperature protection for thermal independence of the channels Current limitation Shorted load protections Undervoltage shutdown Protection against loss of ground Very low stand-by current Compliance to 61000-4-4 IEC test up to 4kV PowerSO-36 It can be driven by using a 3.3V logic supply. Active current limitation, combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, the channel turns OFF, then back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes the case temperature reach TCSD, the overloaded channel is turned OFF and will restart only when the case temperature has decreased down to TCR (see Figures 6-7). Channels that are not overloaded continue to operate normally. Description The VN808

VN808CM-E High-side Driver Main Features 8 output channels (8 x 0.7A) 1 feedback channel - diagnostic CMOS compatible signals allow direct connection to a microcontroller Outputs + Diagnostic indicated by LEDs EMC Immunity Proof 4kV level EFT (IEC 61000-4-4), 2kV Voltage Surge (IEC 610004-5) Compatible with existing ST tools (CANIC10, ARMIC30 ...) 10.5 / 33V DC Supply Voltage range Introduction This application note describes the STEVAL-IFP001V1 hardware implementation. It focus on PCB design which is critical for EMC immunity robustness and thermal management. The VN808CM-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology. The product is intended for driving any kind of load with one side connected to ground. It can be driven by using a 5.0V or 3.3V logic supply. This allows realizing an output stage without optical decoupling or another level-shifting. Active current limitation, combined with thermal shutdown and automatic restart, protect the device ag

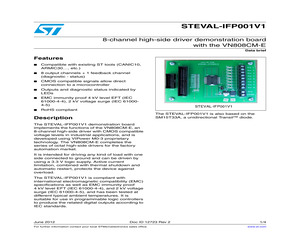

VN808CM-E Data brief Features Compatible with existing ST tools (CANIC10, ARMIC30..., etc.) 8 output channels + 1 feedback channel (diagnostic - status) CMOS compatible signals allow direct connection to a microcontroller Outputs and diagnostic status indicated by LEDs EMC immunity proof 4 kV level EFT (IEC 61000-4-4), 2 kV voltage surge (IEC 610004-5) RoHS compliant The STEVAL-IFP001V1 is also based on the SM15T33A, a unidirectional TransilTM diode. Description The STEVAL-IFP001V1 demonstration board implements the functions of the VN808CM-E, an 8-channel high-side driver with CMOS compatible voltage levels in industrial applications, and is developed using VIPower M0-3 proprietary technology. The VN808CM-E completes the series of octal high-side drivers for the factory automation market. It is intended for driving any kind of load with one side connected to ground and can be driven by using a 3.3 V logic supply. Active current limitation, combined with thermal shutdown
