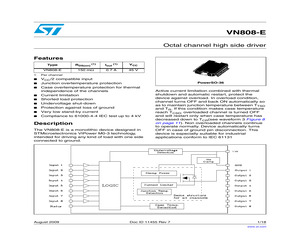

VN808-E Octal channel high-side driver Datasheet - production data Features Type RDS(on)(1) Iout(1) VCC VN808-E 150 m 0.7 A 45 V 1. Per channel VCC/2 compatible input Junction overtemperature protection Case overtemperature protection for thermal independence of the channels Current limitation Short-circuit load protection Undervoltage shutdown Protection against loss of ground Very low standby current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808-E is a monolithic device, realized in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. November 2012 This is information on a product in full production. PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, the channel turns OFF and ON again automatically in order to maintain the junction temperature between TTSD and TR. If this condition makes cas

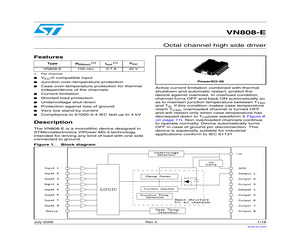

VN808-E Octal channel high side driver Features Type RDS(on) (1) Iout (1) VCC VN808-E 150 m 0.7 A 45 V 1. Per channel VCC/2 compatible input Junction over-temperature protection Case over-temperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shut-down Protection against loss of ground Very low stand-by current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. Figure 1. August 2008 PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and will restart only wh

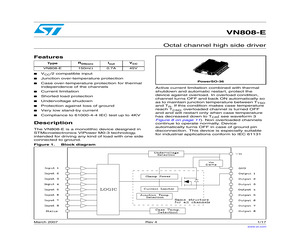

VN808-E Octal channel high side driver Features Type RDS(on) (1) Iout (1) VCC VN808-E 150 m 0.7 A 45 V 1. Per channel VCC/2 compatible input Junction overtemperature protection Case overtemperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shut-down Protection against loss of ground Very low stand-by current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. February 2010 PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and will restart only when case te

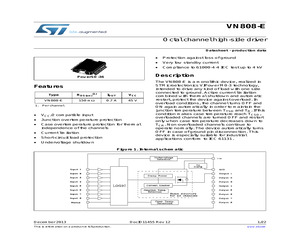

VN808-E Octal channel high-side driver Datasheet - production data * Protection against loss of ground * Very low standby current * Compliance to 61000-4-4 IEC test up to 4 kV Description PowerSO-36 Features Type RDS(on)(1) IOUT VCC VN808-E 150 m 0.7 A 45 V 1. Per channel * VCC/2 compatible input * Junction overtemperature protection * Case overtemperature protection for thermal independence of the channels * Current limitation * Short-circuit load protection The VN808-E is a monolithic device, realized in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload conditions, the channel turns OFF and ON again automatically in order to maintain the junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channels are turned OFF and restart on

VN808-E Octal channel high side driver Features Type RDS(on) (1) Iout (1) VCC VN808-E 150 m 0.7 A 45 V 1. Per channel VCC/2 compatible input Junction overtemperature protection Case overtemperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shut-down Protection against loss of ground Very low stand-by current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. August 2009 PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and will restart only when case temp

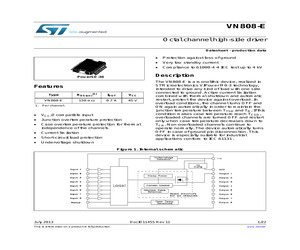

VN808-E Octal channel high-side driver Datasheet - production data * Protection against loss of ground * Very low standby current * Compliance to 61000-4-4 IEC test up to 4 kV Description PowerSO-36 Features Type RDS(on)(1) IOUT VCC VN808-E 150 m 0.7 A 45 V 1. Per channel * VCC/2 compatible input * Junction overtemperature protection * Case overtemperature protection for thermal independence of the channels * Current limitation * Short-circuit load protection The VN808-E is a monolithic device, realized in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload conditions, the channel turns OFF and ON again automatically in order to maintain the junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channels are turned OFF and restart on

VN808-E Octal channel high-side driver Datasheet - production data * Protection against loss of ground * Very low standby current * Compliance to 61000-4-4 IEC test up to 4 kV Description PowerSO-36 Features Type RDS(on)(1) IOUT VCC VN808-E 150 m 0.7 A 45 V 1. Per channel * VCC/2 compatible input * Junction overtemperature protection * Case overtemperature protection for thermal independence of the channels * Current limitation * Short-circuit load protection The VN808-E is a monolithic device, realized in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload conditions, the channel turns OFF and ON again automatically in order to maintain the junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channels are turned OFF and restart on

VN808-E Octal channel high side driver Features Type RDS(on) (1) Iout (1) VCC VN808-E 150 m 0.7 A 45 V 1. Per channel VCC/2 compatible input Junction over-temperature protection Case over-temperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shut-down Protection against loss of ground Very low stand-by current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. Figure 1. July 2008 PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and will restart only when

VN808-E Octal channel high side driver Features Type RDS(on) Iout VCC VN808-E 150m 0.7A 45V VCC/2 compatible input Junction over-temperature protection Case over-temperature protection for thermal independence of the channels Current limitation Shorted load protection Undervoltage shudown Protection against loss of ground Very low stand-by current Compliance to 61000-4-4 IEC test up to 4KV Description The VN808-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. Figure 1. March 2007 PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and and will restart only when case temperature has de

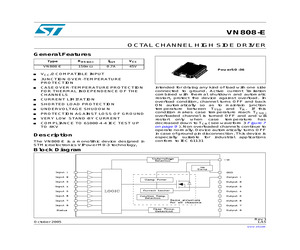

VN808-E OCTAL CHANNEL HIGH SIDE DRIVER General Features Type RDS(on) Iout VCC VN808-E 150m 0.7A 45V PowerSO-36 VCC/2 COMPATIBLE INPUT JUNCTION OVER-TEMPERATURE PROTECTION CASE OVER-TEMPERATURE PROTECTION FOR THERMAL INDEPENDENCE OF THE CHANNELS CURRENT LIMITATION SHORTED LOAD PROTECTION UNDERVOLTAGE SHUDOWN PROTECTION AGAINST LOSS OF GROUND VERY LOW STAND-BY CURRENT COMPLIANCE TO 61000-4-4 IEC TEST UP TO 4KV Description The VN808-E is a monolithic device designed in STMicroelectronics VIPower M0-3 technology, intended for driving any kind of load with one side connected to ground. Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, channel turns OFF and back ON automatically so as to maintain junction temperature between TTSD and TR. If this condition makes case temperature reach TCSD, overloaded channel is turned OFF and and will restart only when case temperature has decreased down

VN808-E Octal channel high-side driver Datasheet - production data Features Type RDS(on)(1) Iout(1) VCC VN808-E 150 m 0.7 A 45 V 1. Per channel VCC/2 compatible input Junction overtemperature protection Case overtemperature protection for thermal independence of the channels Current limitation Short-circuit load protection Undervoltage shutdown Protection against loss of ground Very low standby current Compliance to 61000-4-4 IEC test up to 4 kV Description The VN808-E is a monolithic device, realized in STMicroelectronics VIPower M0-3 technology, intended to drive any kind of load with one side connected to ground. November 2012 This is information on a product in full production. PowerSO-36 Active current limitation combined with thermal shutdown and automatic restart, protect the device against overload. In overload condition, the channel turns OFF and ON again automatically in order to maintain the junction temperature between TTSD and TR. If this condition makes cas

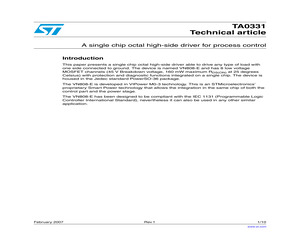

VN808-E and has 8 low voltage MOSFET channels (45 V Breakdown voltage, 160 mW maximum RDS(ON) at 25 degrees Celsius) with protection and diagnostic functions integrated on a single chip. The device is housed in the Jedec standard PowerSO-36 package. The VN808-E is developed in VIPower M0-3 technology. This is an STMicroelectronics' proprietary Smart Power technology that allows the integration in the same chip of both the control part and the power stage. The VN808-E has been designed to be compliant with the IEC 1131 (Programmable Logic Controller International Standard), nevertheless it can also be used in any other similar application. February 2007 Rev 1 1/10 www.st.com Contents TA0331 Contents 1 Technical description at block level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2 Application description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3 Driving an inductive load . . . . . . . . . . . . . . . . . . . . . . . .

737FP TDE1747DP TDE1747FP TDE1767ADP TDE1767DP TDE1787ADP TDE1787DP TDE1798DP TDE1897CDP TDE1897RDP TDE1898CDP TDE1898CFP TDE1898RDP TDE3247FP VN330SP-32-E VN330SP-E VN340SP-33-E VN340SP-E VN540-12-E VN540-E VN540SP-E VN751PT VN751S VN808CM-E VN808CM-32-E VN808-E VN808-32-E VN808SR VNQ860-E VNQ860SP-E Package VCC (V) VDSS (V) RDS(on) () PowerSO-20 SO-20 SO-20 SO-14 DIP-8 SO-14 DIP-8 DIP-8 DIP-8 DIP-8 DIP-8 DIP-8 DIP-8 DIP-8 SO-20 DIP-8 SO-14 PowerSO-10 PowerSO-10 PowerSO-10 PowerSO-10 PENTAWATT PENTAWATT PowerSO-10 PPAK SO-8 PowerSO-36 PowerSO-36 PowerSO-36 PowerSO-36 PowerSO-36 SO-20 PowerSO-10 9.5 to 35 10.8 to 35 8 to 35 8 to 45 10 to 45 10 to 45 6 to 55 6 to 45 6 to 55 6 to 45 6 to 35 18 to 35 18 to 35 18 to 35 18 to 35 18 to 36 8 to 30 10 to 36 10 to 36 10 to 36 10 to 36 10 to 36 10 to 36 10 to 36 5.5 to 36 5.5 to 36 10.5 to 36 10.5 to 36 10.5 to 36 10.5 to 36 10.5 to 36 5.5 to 36 5.5 to 36 50 40 40 50 50 50 60 50 60 50 50 50 50 50 50 50 36 45 45 45 45 45 45 45 41 41 41 41 41 41 41 41 41 0.1

oid undervoltage shut-down EMC filter . . . . . . Vcc24V- 28,2V IEC61131 c/2 Vc m co 22F le tib pa s ut inp VCC disconnection. Surge test suggested 1,5KE39xx 100nF . . . Vin 1 Vin 2 Imax 80A Load 2 . Load 3 Vin 3 Vin 8 Load 1 10nF Protection against VN808 VN808-E IEC 61000-4-6 Current injection test Status Load 8 Status output current From 2 to 4 mA 10 RGND (OPTIONAL) protection against disconnection On inductive loads PROTECTIONS INCLUDED IN THE DEVICE: IEC 61000-4-2 ESD test better than 2kV Human Body Model - IEC 61000-4-4 Burst test Table 9. Truth table Conditions INPUTn OUTPUTn STATUS Normal operation L H L H L L Current limitation L H L X L L Overtemperature (see waveforms 3, 4 Figure 8) -> TJ > TTSD L H L L L H Undervoltage L H L L X X 9/18 Switching time waveforms 5 10/18 Switching time waveforms Figure 6. Turn-ON and turn-OFF Figure 7. VCC turn-ON VN808-32-E VN808-32-E Switching time waveforms Figure 8. Waveforms 11/18 Switching time waveforms Figure 8. 12/18 Waveforms (continued) VN808-3

void undervoltage shut-down EMC filter Vcc24V- 28,2V IEC61131 . . . . . c/2 Vc m co . 22F ti pa ble uts inp VCC disconnection. Surge test suggested 1,5KE39xx 100nF . . . Vin 1 Imax 80A Load 2 Vin 2 . Load 3 Vin 3 Vin 8 Load 1 10nF Protection against VN808 VN808-E IEC 61000-4-6 Current injection test Status Load 8 Status output current From 2 to 4 mA 10 RGND (OPTIONAL) protection against disconnection On inductive loads PROTECTIONS INCLUDED IN THE DEVICE: IEC 61000-4-2 ESD test better than 2kV Human Body Model - IEC 61000-4-4 Burst test Table 9. Truth table Conditions INPUTn OUTPUTn STATUS Normal operation L H L H L L Current limitation L H L X L L Overtemperature (see waveforms 3, 4 Figure 8) -> TJ > TTSD L H L L L H Undervoltage L H L L X X DocID14352 Rev 8 9/22 Switching time waveforms 5 VN808-32-E Switching time waveforms Figure 6. Turn-on and turn-off Figure 7. VCC turn-on 10/22 DocID14352 Rev 8 VN808-32-E Switching time waveforms Figure 8. Waveforms DocID14352 Rev 8 11/22 Switching time wave
