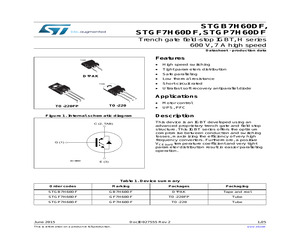

STGP7H60DF Trench gate field-stop IGBT, H series 600 V, 7 A high speed Datasheet - production data Features TAB * High speed switching * Tight parameters distribution 3 1 * Safe paralleling DPAK * Low thermal resistance * Short-circuit rated TAB * Ultrafast soft recovery antiparallel diode 3 3 1 2 1 2 TO-220 TO-220FP Applications * Motor control * UPS, PFC Figure 1. Internal schematic diagram Description This device is an IGBT developed using an advanced proprietary trench gate and field stop structure. This IGBT series offers the optimum compromise between conduction and switching losses, maximizing the efficiency of very high frequency converters. Furthermore, a positive VCE(sat) temperature coefficient and very tight parameter distribution result in easier paralleling operation. C (2, TAB) G (1) E (3) Table 1. Device summary Order codes Marking Packages Packaging STGB7H60DF GB7H60DF DPAK Tape and reel STGF7H60DF GF7H60DF TO-220FP Tube STGP7H60DF GP7H60DF TO-220 Tube June 2015 This
