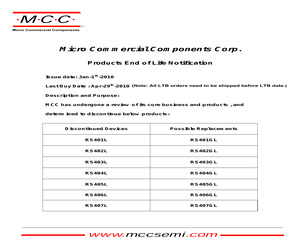

010 Last Buy Date : Apr-29th-2010 Description and Purpose: MCC has undergone a review of its core business and products , and determined to discontinue below products: Discontinued Devices Possible Replacements RS401L RS401GL RS402L RS402GL RS403L RS403GL RS404L RS404GL RS405L RS405GL RS406L RS406GL RS407L RS407GL www.mccsemi.com MCC TM Micro Commercial Components RS401L THRU RS407L omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * x Low Leakage and Low Forward Voltage Silver Plated Copper Leads Any Mounting Position Lead Free Finish/RoHS Compliant (NOTE 1)("P" Suffix designates RoHS Compliant. See ordering information) Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 4 Amp Single Phase Bridge Rectifier 50 to 1000 Volts RS - 4L Maximum Ratings Operating Temperature(Tj): -55C to +125C * * * * A Storage Temperature(Tstg): -55C to +150C Typical Thermal Resistance per leg (Rthja): 19 C/W. Typical Thermal Resistance per leg (RthjL): 2.4C

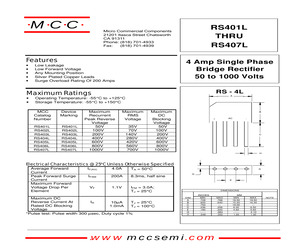

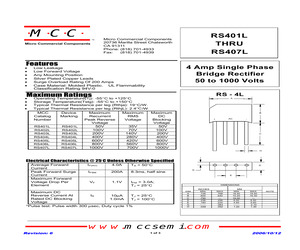

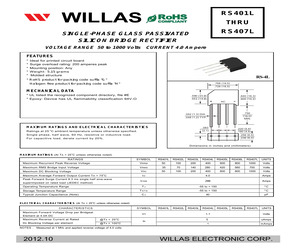

pecified. .256 (6.5) Single phase, half wave, 60 Hz, resistive or inductive load. .236 (6.0) For capacitive load, derate current by 20%. Dimensions in inches and (millimeters) MAXIMUM RATINGS (@ TA=25 OC unless otherwise noted) SYMBOL RS401L RS402L RS403L RS404L RS405L RS406L RS407L UNITS Maximum Recurrent Peak Reverse Voltage VRRM 50 100 200 400 600 800 1000 Volts Maximum RMS Voltage VRMS 35 70 140 280 420 560 700 Volts VDC 50 100 200 400 600 800 1000 Volts RATINGS Maximum DC Blocking Voltage Maximum Average Forward Rectified Current o at T A = 50 C Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) IO 4.0 Amps I FSM 150 Amps 2 Typical Current Squarad Time Typical Thermal Resistance (Note 1) Typical Junction Capacitance (Note 3) Operating and Storage Temperature Range I t R JC 93.37 R JA 28 CJ 40 A2/Sec 10 T J, T STG 0 C/ W pF 0 -55 to + 150 C ELECTRICAL CHARACTERISTICS (@TA=25 OC unless otherwise noted) CHARACTERISTICS Maximum Instantaneous Forward

60 .50 .40 800V RB156MS-ND .80 .70 .60 .50 .40 1000V RB157MS-ND .80 .70 .60 .50 .40 RS-4L -- 4 Amp Single Phase Bridge Rectifier 50V RS401LMS-ND 1.60 1.40 1.20 1.00 .80 100V RS402LMS-ND 1.60 1.40 1.20 1.00 .80 200V RS403LMS-ND 1.60 1.40 1.20 1.00 .80 400V RS404LMS-ND 1.60 1.40 1.20 1.00 .80 600V RS405LMS-ND 2.00 1.75 1.50 1.25 1.00 800V RS406LMS-ND 2.00 1.75 1.50 1.25 1.00 1000V RS407LMS-ND 2.00 1.75 1.50 1.25 1.00 DB-1 -- 1 Amp Single Phase Glass Passivated Bridge Rectifier 50V DB101MS-ND .60 .58 .45 .38 .30 100V DB102MS-ND .60 .58 .45 .38 .30 200V DB103MS-ND .60 .58 .45 .38 .30 400V DB104MS-ND .60 .58 .45 .38 .30 600V DB105MS-ND .80 .77 .60 .50 .40 800V DB106MS-ND .80 .77 .60 .50 .40 1000V DB107MS-ND .80 .77 .60 .50 .40 BR-6 -- 8 Amp Single Phase Bridge Rectifier 50V MB805MS-ND 2.20 1.93 1.65 1.38 1.10 100V MB81MS-ND 2.20 1.93 1.65 1.38 1.10 200V MB82MS-ND 2.20 1.93 1.65 1.38 1.10 400V MB84MS-ND 2.20 1.93 1.65 1.38 1.10 600V MB86MS-ND 2.20 1.93 1.65 1.38 1.10 800V MB88MS-ND 2.20 1.93 1.65 1.38

.043 .12 .071 .07 .05 .06 .035 .15 .091 500 .012 .056 .056 .056 .056 .056 .035 .056 .035 .028 .071 For quantities of 1000 and up, call for quote. 833-DB101-BP 833-DB104-BP 833-DB105-BP 833-RB151-BP 833-RB152-BP 833-RB154-BP 833-RB155-BP 833-RS402L-BP 833-RS404L-BP 833-PB64-BP 833-PB610-BP 833-MB1005-BP 833-MB102-BP MCC Part No. DB101-BP DB104-BP DB105-BP RB151-BP RB152-BP RB154-BP RB155-BP RS402L-BP RS404L-BP PB64-BP PB610-BP MB1005-BP MB102-BP (c) Copyright 2011 Mouser Electronics 833-MB104-BP 833-MB106-BP 833-MP504W-BP 833-MP506-BP Package Type MCC Part No. Rectifying Current VRM Price Each 1 MB104-BP BR-6 10A400V 1.44 MB106-BP BR-6 10A600V 1.44 MP504W-BP MP-50W 50A400V 4.51 MP506-BP MP-50 50A600V 4.51 100 1.22 1.22 3.39 3.39 500 1.02 1.02 2.82 2.82 For quantities of 1000 and up, call for quote. MOUSER STOCK NO. 833-1N4001-TP 833-DL4001-TP 833-1N4002-TP 833-DL4002-TP 833-1N4003-TP 833-1N4004-TP 833-DL4004-TP 833-1N4005-TP 833-1N4006-TP 833-1N4007-TP 833-DL4007-TP 833-S2A-TP 833-6A

half wave, 60Hz, resistive of inductive load. VRMS Maximum RMS Bridge Input Voltage VDC Maximum DC Blocking For capacitive load,Voltage derate current by 20% Maximum Average Forward Output Current T A = 75oC RS401L RS402L RS406L RS407L UNITS 50 100 RS403L RS404L RS405L 200 400 600 800 1000 Volts 35 70 140 280 420 560 700 Volts 50 100 200 400 600 800 1000 IO RATINGS 4.0 SYMBOL FM120-MH FM130-MH FM140-MH FM150-MH FM160-MH FM180-MH FM1100-MH FM115 Peak Forward Surge Current 8.3 ms single half sine-wave I FSM Marking Codeon rated load (JEDEC method) superimposed VRRM Operating Recurrent Temperature Peak Range Reverse Voltage Maximum Storage Temperature Range Maximum RMS Voltage VRMS Maximum DC Blocking Voltage VDC Typical Junction Capacitance (Note) TJ TSTG CJ 200 12 20 13 30 14 40 15 -55 to + 50 150 16 60 18 80 14 21 28 -55 to + 150 35 42 56 20 30 40 50 60 80 40 Maximum Average Forward Rectified ELECTRICAL CHARACTERISTICS (At TA = 25Current C unless otherwise noted) IO 1.0 30 o CHARACTERISTICS Peak

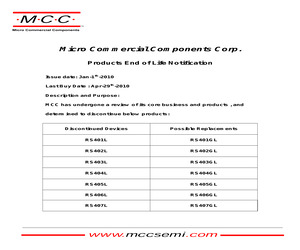

d to be shipped before LTB date.) Description and Purpose: MCC has undergone a review of its core business and products , and determined to discontinue below products: Discontinued Devices Possible Replacements RS401L RS401GL RS402L RS402GL RS403L RS403GL RS404L RS404GL RS405L RS405GL RS406L RS406GL RS407L RS407GL www.mccsemi.com MCC TM Micro Commercial Components RS401L THRU RS407L omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * x Low Leakage and Low Forward Voltage Silver Plated Copper Leads Any Mounting Position Lead Free Finish/RoHS Compliant (NOTE 1)("P" Suffix designates RoHS Compliant. See ordering information) Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 4 Amp Single Phase Bridge Rectifier 50 to 1000 Volts RS - 4L Maximum Ratings Operating Temperature(Tj): -55C to +125C * * * * A Storage Temperature(Tstg): -55C to +150C Typical Thermal Resistance per leg (Rthja): 19 C/W. Typical Thermal Resistance per leg (RthjL): 2.4C

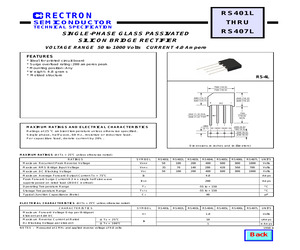

ng Voltage Maximum Average Forward Output Current T A = 75oC Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Operating Temperature Range Storage Temperature Range Typical Junction Capacitance (Note) RS403L RS404L RS405L Volts IO 4.0 Amps I FSM 200 Amps TJ -55 to + 150 0 C TSTG -55 to + 150 0 C CJ 40 pF ELECTRICAL CHARACTERISTICS (At TA = 25oC unless otherwise noted) CHARACTERISTICS SYMBOL Maximum Forward Voltage Drop per Bridgeat Element at 4.0A DC VF o Maximum Reverse Current at Rated @T A = 25 C Dc Blocking Voltage per element @T A = 100 oC NOTES : Measured at 1 MHZ and applied reverse voltage of 4.0 volts IR RS401L RS402L RS403L RS404L RS405L 1.0 RS406L RS407L UNITS Volts 10 uAmps 1 mAmps 1998-8 Back RECTRON

ngs Operating Temperature(Tj): -55C to +125C * * * * A Storage Temperature(Tstg): -55C to +150C Typical Thermal Resistance per leg (Rthja): 19 C/W. Typical Thermal Resistance per leg (RthjL): 2.4C /W. MCC Catalog Number Device Marking RS401L RS402L RS403L RS404L RS405L RS406L RS407L RS401L RS402L RS403L RS404L RS405L RS406L RS407L Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage 35V 70V 140V 280V 420V 560V 700V Maximum DC Blocking Voltage 50V 100V 200V 400V 600V 800V 1000V B AC + - C H Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Forward Voltage Drop Per Element Maximum DC Reverse Current At Rated DC Blocking Voltage Notes: IF(AV) 4.0A TA = 50C IFSM 200A 8.3ms, half sine D G E VF IR 1.1V 10A 1.0mA IFM = 3.0A; TJ = 25C TJ = 25C TJ = 100C 1. High Temperature Solder Exemption Applied, see EU Directive Annex Notes 7 DIMENSIONS DIM A B C D E G H INCHES MIN .728 .600 .750

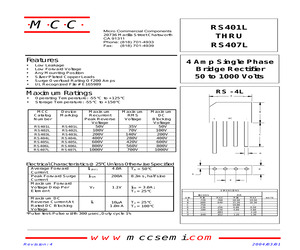

Forward Voltage Any Mounting Position Silver Plated Copper Leads Surge Overload Rating Of 200 Amps Maximum Ratings * * RS - 4L A Operating Temperature: -55C to +125C Storage Temperature: -55C to +150C MCC Catalog Number Device Marking RS401L RS402L RS403L RS404L RS405L RS406L RS407L RS401L RS402L RS403L RS404L RS405L RS406L RS407L Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage 35V 70V 140V 280V 420V 560V 700V Maximum DC Blocking Voltage 50V 100V 200V 400V 600V 800V 1000V B AC + - C H Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Forward Voltage Drop Per Element IF(AV) 4.0A TA = 50C IFSM 200A 8.3ms, half sine D G E VF 1.1V IFM = 3.0A; TJ = 25C Maximum DC Reverse Current At IR 10A TJ = 25C Rated DC Blocking 1.0mA TJ = 100C Voltage *Pulse test: Pulse width 300 sec, Duty cycle 1% DIMENSIONS DIM A B C D E G H INCHES MIN .728 .600 .750 .236 .180 -----.048 .www mccsemi.com

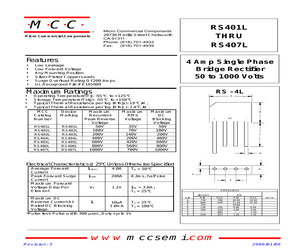

ypical Thermal Resistance per leg (RthjL): 2.4C /W. MCC Device Maximum Maximum Maximum Catalog Marking Recurrent RMS DC Number Peak Reverse Voltage Blocking Voltage Voltage RS401L RS401L 50V 35V 50V RS402L RS402L 100V 70V 100V RS403L RS403L 200V 140V 200V RS404L RS404L 400V 280V 400V RS405L RS405L 600V 420V 600V RS406L RS406L 800V 560V 800V RS407L RS407L 1000V 700V 1000V A B AC + - C H Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Forward Voltage Drop Per Element IF(AV) 4.0A TA = 50C IFSM 200A 8.3ms, half sine G E VF 1.1V IFM = 3.0A; TJ = 25C Maximum DC Reverse Current At IR 10A TJ = 25C Rated DC Blocking 1.0mA TJ = 100C Voltage *Pulse test: Pulse width 300 sec, Duty cycle 1% Revision: 5 D DIMENSIONS DIM A B C D E G H INCHES MIN .728 .600 .750 .236 .180 -----.048 .www mccsemi.com MAX .768 .640 --.256 .220 .083 .052 MM MIN 18.50 15.20 19.00 6.00 4.60 -----1.20 MAX 19.50 16.30 --6.50 5.60 2.10 1.30 NOTE 2006/01/06

ypical Thermal Resistance per leg (RthjL): 2.4C /W. MCC Device Maximum Maximum Maximum Catalog Marking Recurrent RMS DC Number Peak Reverse Voltage Blocking Voltage Voltage RS401L RS401L 50V 35V 50V RS402L RS402L 100V 70V 100V RS403L RS403L 200V 140V 200V RS404L RS404L 400V 280V 400V RS405L RS405L 600V 420V 600V RS406L RS406L 800V 560V 800V RS407L RS407L 1000V 700V 1000V B AC + - C H Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Forward Voltage Drop Per Element IF(AV) 4.0A TA = 50C IFSM 200A 8.3ms, half sine D G E VF 1.1V IFM = 3.0A; TJ = 25C Maximum DC Reverse Current At IR 10A TJ = 25C Rated DC Blocking 1.0mA TJ = 100C Voltage *Pulse test: Pulse width 300 sec, Duty cycle 1% DIMENSIONS DIM A B C D E G H INCHES MIN .728 .600 .750 .236 .180 -----.048 MAX .768 .640 --.256 .220 .083 .052 MM MIN 18.50 15.20 19.00 6.00 4.60 -----1.20 MAX 19.50 16.30 --6.50 5.60 2.10 1.30 NOTE www.mccsemi.com Revision: 6 1 of 3 2006/1

Position Silver Plated Copper Leads Surge Overload Rating Of 200 Amps UL Recognized File # E165989 Maximum Ratings * * RS - 4L A Operating Temperature: -55C to +125C Storage Temperature: -55C to +150C MCC Catalog Number Device Marking RS401L RS402L RS403L RS404L RS405L RS406L RS407L RS401L RS402L RS403L RS404L RS405L RS406L RS407L Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage 35V 70V 140V 280V 420V 560V 700V Maximum DC Blocking Voltage 50V 100V 200V 400V 600V 800V 1000V B AC + - C H Electrical Characteristics @ 25C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Forward Voltage Drop Per Element IF(AV) 4.0A TA = 50C IFSM 200A 8.3ms, half sine G E VF 1.1V IFM = 3.0A; TJ = 25C Maximum DC Reverse Current At IR 10A TJ = 25C Rated DC Blocking 1.0mA TJ = 100C Voltage *Pulse test: Pulse width 300 sec, Duty cycle 1% Revision: 4 D DIMENSIONS DIM A B C D E G H INCHES MIN .728 .600 .750 .236 .180 -----.048 .www

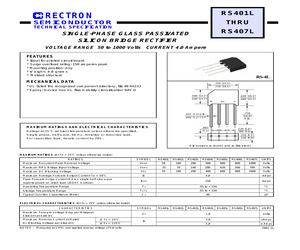

ng Voltage Maximum Average Forward Output Current T A = 50oC Peak Forward Surge Current 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) Operating Temperature Range Storage Temperature Range Typical Junction Capacitance (Note) RS403L RS404L RS405L Volts IO 4.0 Amps I FSM 150 Amps TJ -55 to + 150 0 C TSTG -55 to + 150 0 C CJ 40 pF ELECTRICAL CHARACTERISTICS (At TA = 25oC unless otherwise noted) CHARACTERISTICS SYMBOL Maximum Forward Voltage Drop per Bridgeat Element at 4.0A DC VF o Maximum Reverse Current at Rated @T A = 25 C Dc Blocking Voltage per element @T A = 125 oC NOTES : Measured at 1 MHZ and applied reverse voltage of 4.0 volts IR RS401L RS402L RS403L RS404L RS405L 1.0 RS406L RS407L UNITS Volts 5.0 uAmps 1.0 mAmps 2002-11 PEAK FORWARD SURGE CURRENT, (A) FIG. 1 - MAXIMUM NON-REPETITIVE FORWARD SURGE CURRENT 180 150 8.3ms Single Half Sine-Wave (JEDEC Method) 120 90 60 30 0 1 2 5 10 20 50 NUMBER OF CYCLES AT 60Hz 100 AVERAGE FORWARD OUTPUT CURRENT, (A) RATI
