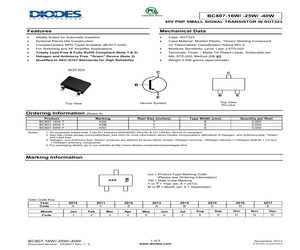

BC807-16W/ -25W/ -40W 45V PNP SMALL SIGNAL TRANSISTOR IN SOT323 Features Mechanical Data Ideally Suited for Automatic Insertion Epitaxial Planar Die Construction Complementary NPN Types Available (BC817-xxW) Case: SOT323 Case Material: Molded Plastic, "Green" Molding Compound UL Flammability Classification Rating 94V-0 For Switching and AF Amplifier Applications Totally Lead-Free & Fully RoHS Compliant (Note 1 & 2) Halogen and Antimony Free. "Green" Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 SOT323 Weight 0.006 grams (approximate) C B E Top View Pin-Out Device Symbol Top View Ordering Information (Notes 4) Product BC807-16W-7 BC807-25W-7 BC807-40W-7 Notes: Marking K5A K5B K5C Reel Size (inches) 7 7 7 Tape Width (mm) 8 8 8 Quantity per Reel 3,000 3,000 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU

BC807-16W/-25W/-40W Taiwan Semiconductor Small Signal Product 200mW, PNP Small Signal Transistor FEATURES - Epitaxial planar die construction - Surface mount device type - Moisture sensitivity level 1 - Matte Tin(Sn) lead finish with Nickel(Ni) underplate - Pb free and RoHS complian - Green compound (Halogen free) with suffix "G" on packing code and prefix "G" on date code MECHANICAL DATA - Case: SOT- 323 small outline plastic package - Terminal: Matte tin plated, lead free, solderable per MIL-STD-202, Method 208 guaranteed SOT-323 - High temperature soldering guaranteed: 260C/10s - Weight: 0.005 grams (approximately) MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS (TA=25 unless otherwise noted) PARAMETER SYMBOL VALUE UNIT Power Dissipation Collector-Base Voltage PD VCBO 200 50 mW V Collector-Emitter Voltage VCEO 45 V Emitter-Base Voltage VEBO 5 V IC 0.5 A Thermal Resistance, Junction to Ambient RJA 625 K/W Junction and Storage Temperature Range TJ , TSTG -55 to + 150 C Collector Current Notes: 1.

BC807-16W/ -25W/ -40W 45V PNP SMALL SIGNAL TRANSISTOR IN SOT323 Features Mechanical Data Ideally Suited for Automatic Insertion Epitaxial Planar Die Construction Complementary NPN Types Available (BC817-xxW) Case: SOT323 Case Material: Molded Plastic, "Green" Molding Compound UL Flammability Classification Rating 94V-0 For Switching and AF Amplifier Applications Totally Lead-Free & Fully RoHS Compliant (Note 1 & 2) Halogen and Antimony Free. "Green" Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Moisture Sensitivity: Level 1 per J-STD-020 Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 SOT323 Weight 0.006 grams (approximate) C B E Top View Pin-Out Device Symbol Top View Ordering Information (Notes 4) Product BC807-16W-7 BC807-25W-7 BC807-40W-7 Notes: Marking K5A K5B K5C Reel Size (inches) 7 7 7 Tape Width (mm) 8 8 8 Quantity per Reel 3,000 3,000 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU

346 yellow BZV55-C75 SOD80C BC807 5Dp; 5Dt SOT23 BC807W 5Dt; 5D- SC-70/SOT323 BC807-16 5Ap; 5At SOT23 1999 Jun 11 27 Philips Semiconductors Small Signal Transistors and Diodes TYPE NUMBER MARKING CODE Marking codes TYPE NUMBER PACKAGE MARKING CODE PACKAGE BC807-16W 5At; 5A- SC-70/SOT323 BC850C 2Gp; 2Gt SOT23 BC807-25 5Bp; 5Bt SOT23 BC850CW 2Gt; 2G- SC-70/SOT323 BC807-25W 5Bt; 5B- SC-70/SOT323 BC856 3Dp; 3Dt SOT23 BC807-40 5Cp; 5Ct SOT23 BC856A 3Ap; 3At SOT23 BC807-40W 5Ct; 5C- SC-70/SOT323 BC856AT 3A SC-75/SOT416 BC817 6Dp; 6Dt SOT23 BC856AW 3At; 3A- SC-70/SOT323 BC817W 6Dt; 6D- SC-70/SOT323 BC856B 3Bp; 3Bt SOT23 BC817-16 6Ap; 6At SOT23 BC856BT 3B SC-75/SOT416 BC817-16W 6At; 6A- SC-70/SOT323 BC856BW 3Bt; 3B- SC-70/SOT323 BC817-25 6Bp; 6Bt SOT23 BC856W 3Dt; 3D- SC-70/SOT323 BC817-25W 6Bt; 6B- SC-70/SOT323 BC857 3Hp; 3Ht SOT23 BC817-40 6Cp; 6Bt SOT23 BC857A 3Ep; 3Et SOT23 BC817-40W 6Ct; 6C- SC-70/SOT323 BC857AT 3E SC-75/SOT416 BC846 1Dp; 1Dt SOT23 BC857AW 3Et; 3E- SC-70/SOT323 BC846A 1Ap; 1At SOT23

BC807-16W/ -25W/ -40W 45V PNP SMALL SIGNAL TRANSISTOR IN SOT323 Features Mechanical Data Ideally Suited for Automatic Insertion Epitaxial Planar Die Construction Case Material: Molded Plastic, "Green" Molding Compound Complementary NPN Types Available (BC817-xxW) UL Flammability Classification Rating 94V-0 For Switching and AF Amplifier Applications Moisture Sensitivity: Level 1 per J-STD-020 Totally Lead-Free & Fully RoHS Compliant (Note 1 & 2) Halogen and Antimony Free. "Green" Device (Note 3) Qualified to AEC-Q101 Standards for High Reliability Case: SOT323 Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 SOT323 Weight 0.006 grams (approximate) C B E Top View Pin-Out Device Symbol Top View Ordering Information (Notes 4) Product BC807-16W-7 BC807-25W-7 BC807-40W-7 Notes: Marking K5A K5B K5C Reel Size (inches) 7 7 7 Tape Width (mm) 8 8 8 Quantity per Reel 3,000 3,000 3,000 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU

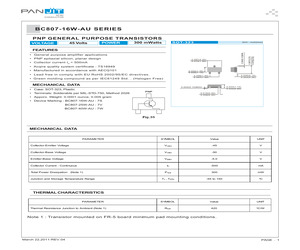

BC807-16W-AU SERIES PNP GENERAL PURPOSE TRANSISTORS 45 Volts VOLTAGE POWER 300 mWatts * PNP epitaxial silicon, planar design 0.087(2.20) 0.070(1.80) * Collector current I C = 500mA 0.087(2.20) 0.078(2.00) 0.004(0.10)MIN. FEATURES * General purpose amplifier applications * Acqire quality system certificate : TS16949 * Manufactured in accordance with AECQ101 0.054(1.35) 0.045(1.15) * Lead free in comply with EU RoHS 2002/95/EC directives. 0.006(0.15) 0.002(0.05) 0.056(1.40) 0.047(1.20) * Green molding compound as per IEC61249 Std. . (Halogen Free) MECHANICAL DATA 0.044(1.10) 0.035(0.90) 0.004(0.10)MAX. * Case: SOT-323, Plastic * Terminals: Solderable per MIL-STD-750, Method 2026 0.016(0.40) 0.008(0.20) * Apporx. Weight: 0.0001 ounce, 0.005 gram * Device Marking : BC807-16W-AU : 7S BC807-25W-AU : 7V BC807-40W-AU : 7W MECHANICAL DATA PARAMETER SYMBOL Value UNIT Collector-Emitter Voltage VCEO -45 V Collector-Base Voltage VCBO -50 V Emitter-Base Voltage VEBO -5.0 V IC -500 mA PTOT 300 mW T

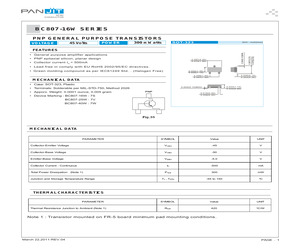

BC807-16W SERIES PNP GENERAL PURPOSE TRANSISTORS 45 Volts VOLTAGE POWER 300 mWatts * PNP epitaxial silicon, planar design 0.087(2.20) 0.070(1.80) * Collector current I C = 500mA 0.087(2.20) 0.078(2.00) 0.004(0.10)MIN. FEATURES * General purpose amplifier applications * Lead free in comply with EU RoHS 2002/95/EC directives. * Green molding compound as per IEC61249 Std. . (Halogen Free) 0.054(1.35) 0.045(1.15) 0.006(0.15) 0.002(0.05) 0.056(1.40) 0.047(1.20) MECHANICAL DATA * Case: SOT-323, Plastic 0.044(1.10) 0.035(0.90) 0.004(0.10)MAX. * Terminals: Solderable per MIL-STD-750, Method 2026 * Apporx. Weight: 0.0001 ounce, 0.005 gram 0.016(0.40) 0.008(0.20) * Device Marking : BC807-16W : 7S BC807-25W : 7V BC807-40W : 7W MECHANICAL DATA PARAMETER SYMBOL Value UNIT Collector-Emitter Voltage VCEO -45 V Collector-Base Voltage VCBO -50 V Emitter-Base Voltage VEBO -5.0 V IC -500 mA PTOT 300 mW TJ , TSTG -55 to 150 oC SYMBOL Value UNIT RJA 420 oC/W Collector Current - Continuous Total Power Dis

346 yellow BZV55-C75 SOD80C BC807 5Dp; 5Dt SOT23 BC807W 5Dt; 5D- SC-70/SOT323 BC807-16 5Ap; 5At SOT23 1999 Jun 11 27 Philips Semiconductors Small Signal Transistors and Diodes TYPE NUMBER MARKING CODE Marking codes TYPE NUMBER PACKAGE MARKING CODE PACKAGE BC807-16W 5At; 5A- SC-70/SOT323 BC850C 2Gp; 2Gt SOT23 BC807-25 5Bp; 5Bt SOT23 BC850CW 2Gt; 2G- SC-70/SOT323 BC807-25W 5Bt; 5B- SC-70/SOT323 BC856 3Dp; 3Dt SOT23 BC807-40 5Cp; 5Ct SOT23 BC856A 3Ap; 3At SOT23 BC807-40W 5Ct; 5C- SC-70/SOT323 BC856AT 3A SC-75/SOT416 BC817 6Dp; 6Dt SOT23 BC856AW 3At; 3A- SC-70/SOT323 BC817W 6Dt; 6D- SC-70/SOT323 BC856B 3Bp; 3Bt SOT23 BC817-16 6Ap; 6At SOT23 BC856BT 3B SC-75/SOT416 BC817-16W 6At; 6A- SC-70/SOT323 BC856BW 3Bt; 3B- SC-70/SOT323 BC817-25 6Bp; 6Bt SOT23 BC856W 3Dt; 3D- SC-70/SOT323 BC817-25W 6Bt; 6B- SC-70/SOT323 BC857 3Hp; 3Ht SOT23 BC817-40 6Cp; 6Bt SOT23 BC857A 3Ep; 3Et SOT23 BC817-40W 6Ct; 6C- SC-70/SOT323 BC857AT 3E SC-75/SOT416 BC846 1Dp; 1Dt SOT23 BC857AW 3Et; 3E- SC-70/SOT323 BC846A 1Ap; 1At SOT23

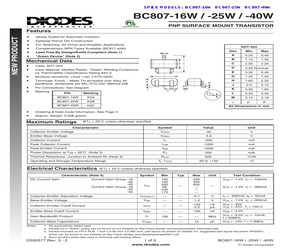

BC807-16W BC807-25W BC807-40W BC807-16W / -25W / -40W PNP SURFACE MOUNT TRANSISTOR Lead-free Green NEW PRODUCT Features * * * * * * Ideally Suited for Automatic Insertion Epitaxial Planar Die Construction For Switching, AF Driver and Amplifier Applications SOT-323 Complementary NPN Types Available (BC817-xxW) Lead Free By Design/RoHS Compliant (Note 1) Dim Min Max A 0.25 0.40 B 1.15 1.35 C 2.00 2.20 D 0.65 Nominal G E 0.30 0.40 H G 1.20 1.40 H 1.80 2.20 J 0.0 0.10 K 0.90 1.00 A "Green Device" (Note 2) C Mechanical Data * * * * * * * * B C Case: SOT-323 B Case Material: Molded Plastic. "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Moisture sensitivity: Level 1 per J-STD-020C Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 K Pin Connections: See Diagram Marking: E M J D L E P/N Marking L 0.25 0.40 BC807-16W K5A M 0.10 0.18 BC807-25W K5B 0 8 BC807-40W K5C All Dimensions in mm Ordering & Date Code

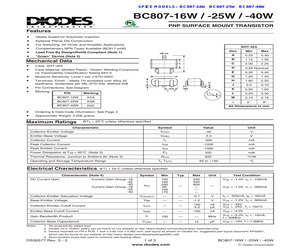

BC807-16W BC807-25W BC807-40W BC807-16W / -25W / -40W PNP SURFACE MOUNT TRANSISTOR Lead-free Green NEW PRODUCT Features * * * * * * Ideally Suited for Automatic Insertion Epitaxial Planar Die Construction For Switching, AF Driver and Amplifier Applications SOT-323 Complementary NPN Types Available (BC817-xxW) Lead Free By Design/RoHS Compliant (Note 1) Dim Min Max A 0.25 0.40 B 1.15 1.35 C 2.00 2.20 D 0.65 Nominal G E 0.30 H G 1.20 1.40 H 1.80 2.20 A "Green Device" (Note 2) C Mechanical Data * * B C Case: SOT-323 * * Moisture sensitivity: Level 1 per J-STD-020C * * Pin Connections: See Diagram * * B Case Material: Molded Plastic. "Green" Molding Compound. UL Flammability Classification Rating 94V-0 Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 Marking: E K M J D L E 0.40 J 0.0 0.10 K 0.90 1.00 P/N Marking L 0.25 0.40 BC807-16W K5A M 0.10 0.18 BC807-25W K5B a 0 8 BC807-40W K5C All Dimensions in mm Ordering & Date Co

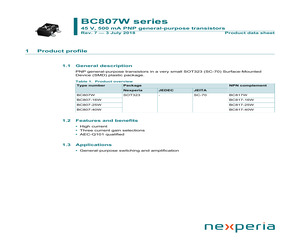

uct profile 1.1 General description PNP general-purpose transistors in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package. Table 1. Product overview Type number BC807W Package NPN complement Nexperia JEDEC JEITA SOT323 - SC-70 BC817W BC807-16W BC817-16W BC807-25W BC817-25W BC807-40W BC817-40W 1.2 Features and benefits * High current * Three current gain selections * AEC-Q101 qualified 1.3 Applications * General-purpose switching and amplification BC807W series Nexperia 45 V, 500 mA PNP general-purpose transistors 1.4 Quick reference data Table 2. Quick reference data Tamb = 25 C unless otherwise specified. Symbol Parameter Conditions Min Typ Max Unit VCEO collector-emitter voltage open base - - -45 V IC collector current - - -500 mA ICM peak collector current single pulse; tp 1 ms - - -1 A hFE DC current gain VCE = -1 V; IC = -100 mA BC807W [1] 100 - 600 BC807-16W [1] 100 - 250 BC807-25W [1] 160 - 400 BC807-40W [1] 250 - 600 [1] pulsed; tp 300 s; 0.02 2 Pinning

BC807-16W BC807-25W BC807-40W BC807-16W / -25W / -40W PNP SURFACE MOUNT TRANSISTOR Lead-free Green Features * * * * * * Ideally Suited for Automatic Insertion Epitaxial Planar Die Construction For Switching, AF Driver and Amplifier Applications SOT-323 Complementary NPN Types Available (BC817-xxW) Lead Free By Design/RoHS Compliant (Note 1) Dim Min Max A 0.25 0.40 B 1.15 1.35 C 2.00 2.20 D 0.65 Nominal G E 0.30 0.40 H G 1.20 1.40 H 1.80 2.20 J 0.0 0.10 K 0.90 1.00 A "Green" Device (Note 2) C Mechanical Data * * * * * * * * B C Case: SOT-323 Case Material: Molded Plastic. "Green" Molding Compound. UL Flammability Classification Rating 94V-0 B Moisture Sensitivity: Level 1 per J-STD-020C Terminals: Finish - Matte Tin annealed over Alloy 42 leadframe. Solderable per MIL-STD-202, Method 208 K Pin Connections: See Diagram Marking: E M J D L E P/N Marking L 0.25 0.40 BC807-16W K5A M 0.10 0.18 BC807-25W K5B a 0 8 BC807-40W K5C All Dimensions in mm Ordering & Date Code Informati

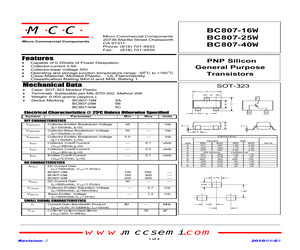

BC807-16W BC807-25W BC807-40W omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * PNP Silicon General Purpose Transistors Capable of 0.2Watts of Power Dissipation. Collector-current 0.5A Collector-base Voltage 50V Operating and storage junction temperature range: -55OC to +150 OC x Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 Mechanical Data * * * * SOT-323 Case: SOT-323 Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Weight: 0.005 grams (approx.) Device Marking: BC807-16W 5A BC807-25W 5B BC807-40W 5C A D C B Parameter Min Max Units Collector-Emitter Breakdown Voltage (IC=10mAdc, IB =0) Collector-Base Breakdown Voltage (IC=10uAdc, IE =0) Collector-Emitter Breakdown Voltage (IE =1.0uAdc, IC=0) Collector Cutoff Current (VCB=20Vdc,IE =0) Collector Cutoff Current (VCE=20V dc,IB =0) Emitter Cutoff Current (VEB =5.0Vdc, IC=0) 45 --- Vdc 50 --- Vdc 5.0 --- Vdc --- 0.1 uAdc --- 0.2 uAdc --- 0.1 uAdc 100 160 25

BC807-16W BC807-25W BC807-40W omponents 20736 Marilla Street Chatsworth !"# $ % !"# Features * * * * PNP Silicon General Purpose Transistors Capable of 0.2Watts of Power Dissipation. Collector-current 0.5A Collector-base Voltage 50V Operating and storage junction temperature range: -55OC to +150 OC x Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 and MSL Rating 1 Mechanical Data * * * * SOT-323 Case: SOT-323 Molded Plastic Terminals: Solderable per MIL-STD-202, Method 208 Weight: 0.005 grams (approx.) Device Marking: BC807-16W 5A BC807-25W 5B BC807-40W 5C A D C B Electrical Characteristics @ 25OC Unless Otherwise Specified Symbol Parameter Min Max Units Collector-Emitter Breakdown Voltage (IC=10mAdc, IB =0) Collector-Base Breakdown Voltage (IC=10uAdc, IE =0) Collector-Emitter Breakdown Voltage (IE =1.0uAdc, IC=0) Collector Cutoff Current (VCB=20Vdc,IE =0) Collector Cutoff Current (VCE=20V dc,IB =0) Emitter Cutoff Current (VEB =5.0Vdc, IC=0) 45 --- Vdc 50 -

BC807-16W SERIES PNP GENERAL PURPOSE TRANSISTORS 45 Volts VOLTAGE POWER 300 mWatts * PNP epitaxial silicon, planar design 0.087(2.20) 0.070(1.80) * Collector current I C = 500mA * In compliance with EU RoHS 2002/95/EC directives 0.087(2.20) 0.078(2.00) 0.004(0.10)MIN. FEATURES * General purpose amplifier applications 0.054(1.35) 0.045(1.15) MECHANICAL DATA 0.006(0.15) 0.002(0.05) 0.056(1.40) 0.047(1.20) * Case: SOT-323, Plastic * Terminals: Solderable per MIL-STD-750, Method 2026 * Apporx. Weight: 0.0001 ounce, 0.005 gram 0.044(1.10) 0.035(0.90) 0.004(0.10)MAX. * Device Marking : BC807-16W : 7S BC807-25W : 7V 0.016(0.40) 0.008(0.20) BC807-40W : 7W MECHANICAL DATA PARAMETER SYMBOL Value UNIT Collector-Emitter Voltage VCEO -45 V Collector-Base Voltage VCBO -50 V Emitter-Base Voltage VEBO -5.0 V IC -500 mA PTOT 300 mW TJ , TSTG -55 to 150 oC SYMBOL Value UNIT RJA 420 oC/W Collector Current - Continuous Total Power Dissipation (Note 1) Junction and Storage Temperature Range THERMAL CHARA
