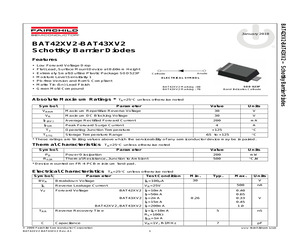

BAT43XV2 Schottky Barrier Diodes Features * * * * * * * Low Forward Voltage Drop Flat Lead, Surface Mount Device at 0.60mm Height Extremely Small Outline Plastic Package SOD523F Moisture Level Sensitivity 1 Pb-free Version and RoHS Compliant Matte Tin (Sn) Lead Finish Green Mold Compound Absolute Maximum Ratings * Symbol Cathode Anode ELECTRICAL SYMBOL SOD-523F Band Indicates Cathode BAT42XV2 Marking : 6B BAT43XV2 Marking : 7B TA=25C unless otherwise noted Value Units Maximum Repetitive Reverse Voltage 30 V Maximum DC Blocking Voltage 30 V IF(AV) Average Rectified Forward Current 200 mA IFSM Peak Forward Surge Current 4 A +125 C -65 to +125 C VRRM VR TJ Parameter Operating Junction Temperature TSTG Storage Temperature Range * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. Thermal Characteristics TA=25C unless otherwise noted Symbol PD RJA Parameter Power Dissipation Thermal Resistance, Junction to Ambient Value Units 200
6 Pages, 156 KB, OriginalON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. BAT42XV2-BAT43XV2 Schottky Barrier Diodes Features * * * * * * * Low Forward Voltage Drop Flat Lead, Surface Mount Device at 0.60mm Height Extremely Small Outline Plastic Package SOD523F Moisture Level Sensitivity 1 Pb-free Version and RoHS Compliant Matte Tin (Sn) Lead Finish Green Mold Compound Absolute Maximum Ratings * Symbol Cathode Anode ELECTRICAL SYMBOL SOD-523F Band Indicates Cathode BAT42XV2 Marking : 6B BAT43XV2 Marking : 7B TA=25C unless otherwise noted Value Units Maximum Repetitive Reverse Voltage 30 V Maximum DC Blocking Voltage 30 V IF(AV) Average Rectified Forward Current 200 mA IFSM Peak Forward Surge Current 4 A +125 C -65 to +125 C VRRM VR TJ Parameter Operating Junction Temperature Storage Temperature Range TSTG * These
6 Pages, 249 KB, OriginalON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner. BAT42XV2-BAT43XV2 Schottky Barrier Diodes Features * * * * * * * Low Forward Voltage Drop Flat Lead, Surface Mount Device at 0.60mm Height Extremely Small Outline Plastic Package SOD523F Moisture Level Sensitivity 1 Pb-free Version and RoHS Compliant Matte Tin (Sn) Lead Finish Green Mold Compound Absolute Maximum Ratings * Symbol Cathode Anode ELECTRICAL SYMBOL SOD-523F Band Indicates Cathode BAT42XV2 Marking : 6B BAT43XV2 Marking : 7B TA=25C unless otherwise noted Value Units Maximum Repetitive Reverse Voltage 30 V Maximum DC Blocking Voltage 30 V IF(AV) Average Rectified Forward Current 200 mA IFSM Peak Forward Surge Current 4 A +125 C -65 to +125 C VRRM VR TJ Parameter Operating Junction Temperature TSTG Storage Temperature Range * These
6 Pages, 200 KB, OriginalBAT43XV2 Schottky Barrier Diodes Features * * * * * * * Low Forward Voltage Drop Flat Lead, Surface Mount Device at 0.60mm Height Extremely Small Outline Plastic Package SOD523F Moisture Level Sensitivity 1 Pb-free Version and RoHS Compliant Matte Tin (Sn) Lead Finish Green Mold Compound Absolute Maximum Ratings * Symbol Cathode Anode ELECTRICAL SYMBOL SOD-523F Band Indicates Cathode BAT42XV2 Marking : 6B BAT43XV2 Marking : 7B TA=25C unless otherwise noted Value Units Maximum Repetitive Reverse Voltage 30 V Maximum DC Blocking Voltage 30 V IF(AV) Average Rectified Forward Current 200 mA IFSM Peak Forward Surge Current 4 A +125 C -65 to +125 C VRRM VR TJ Parameter Operating Junction Temperature TSTG Storage Temperature Range * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. Thermal Characteristics TA=25C unless otherwise noted Symbol PD RJA Parameter Power Dissipation Thermal Resistance, Junction to Ambient Value Units 200
5 Pages, 132 KB, OriginalBAT43XV2 Schottky Barrier Diodes Features * * * * * * * Low Forward Voltage Drop Flat Lead, Surface Mount Device at 0.60mm Height Extremely Small Outline Plastic Package SOD523F Moisture Level Sensitivity 1 Pb-free Version and RoHS Compliant Matte Tin (Sn) Lead Finish Green Mold Compound Absolute Maximum Ratings * Symbol Cathode Anode ELECTRICAL SYMBOL SOD-523F Band Indicates Cathode BAT42XV2 Marking : 6B BAT43XV2 Marking : 7B TA=25C unless otherwise noted Value Units Maximum Repetitive Reverse Voltage 30 V Maximum DC Blocking Voltage 30 V IF(AV) Average Rectified Forward Current 200 mA IFSM Peak Forward Surge Current 4 A +125 C -65 to +125 C VRRM VR TJ Parameter Operating Junction Temperature TSTG Storage Temperature Range * These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. Thermal Characteristics TA=25C unless otherwise noted Symbol PD RJA Parameter Power Dissipation Thermal Resistance, Junction to Ambient Value Units 200

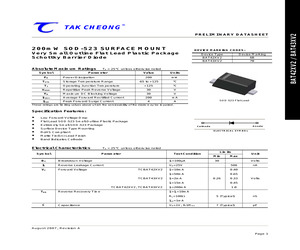

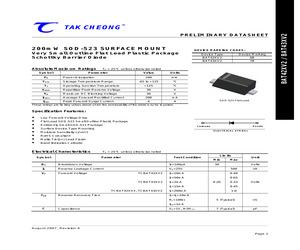

6 Pages, 156 KB, OriginalSurge Current 4 A VR These ratings are limiting values above which the serviceability of the diode may be impaired. Specification Features: Low Forward Voltage Drop DEVICE MARKING CODES: Flat Lead SOD-523 Small Outline Plastic Package Device Type BAT42XV2 BAT43XV2 Extremely Small SOD-523 Package Surface Device Type Mounting Device Marking 6B 7B RoHS Compliant Green EMC Matte Tin(Sn) Lead Finish Band Indicates Cathode Electrical Characteristics Symbol TA = 25C unless otherwise noted Parameter Limits Test Condition Min Unit Max BV Breakdown Voltage IR=100A IR Reverse Leakage Current VR=25V 500 VF Forward Voltage IF=10mA 0.40 IF=50mA 0.65 TCBAT42, TCBAT42, TCBAT42XV2 TCBAT43XV2 TCBAT42XV2, TCBAT43XV2 TRR Reverse Recovery Time IF=2mA 30 0.26 Volts 0.33 IF=15mA 0.45 IF=200mA 1.0 nA Volts IF=IR=10mA RL=100 5 (Typical) nS 7 (Typical) pF IRR=1mA C Capacitance VR=1V, f=1MHZ Nov 2008, Revision C Page 1 BAT42XV2 / BAT43XV2 TAK CHEONG TAK CHEONG (R) SEMICONDUCTOR Typica
4 Pages, 119 KB, OriginalBAT43XV2 Device Marking 6B 7B TA = 25C unless otherwise noted Parameter Power Dissipation Storage Temperature Range Value Units 200 mW -65 to +125 C TJ Operating Junction Temperature +125 C VRRM Repetitive Peak Reverse Voltage 30 V Maximum DC Blocking Voltage 30 V IF(AV) Average Forward Rectified Current 200 mA IFSM Peak Forward Surge Current 4 A VR DEVICE MARKING CODES: SOD-523 Flat Lead These ratings are limiting values above which the serviceability of the diode may be impaired. Specification Features: Low Forward Voltage Drop Flat Lead SOD-523 Small Outline Plastic Package Extremely Small SOD-523 Package Anode Cathode Surface Device Type Mounting ELECTRICAL SYMBOL RoHS Compliant Matte Tin(Sn) Lead Finish Band Indicates Cathode Electrical Characteristics Symbol TA = 25C unless otherwise noted Parameter Limits Test Condition Min Unit Max BV Breakdown Voltage IR=100A IR Reverse Leakage Current VR=25V 500 VF Forward Voltage IF=10mA 0.40 IF=50mA 0.65 TCBAT42, TCBAT42, TCBAT42XV2 TCBAT43XV2
2 Pages, 88 KB, Original
2 Pages, 88 KB, OriginalBAT43XV2 Device Marking 6B 7B TA = 25C unless otherwise noted Parameter Power Dissipation Storage Temperature Range Value Units 200 mW -65 to +125 C TJ Operating Junction Temperature +125 C VRRM Repetitive Peak Reverse Voltage 30 V Maximum DC Blocking Voltage 30 V IF(AV) Average Forward Rectified Current 200 mA IFSM Peak Forward Surge Current 4 A VR DEVICE MARKING CODES: SOD-523 Flat Lead These ratings are limiting values above which the serviceability of the diode may be impaired. Specification Features: Low Forward Voltage Drop Flat Lead SOD-523 Small Outline Plastic Package Extremely Small SOD-523 Package Anode Cathode Surface Device Type Mounting ELECTRICAL SYMBOL Moisture Sensitivity Level 1 RoHS Compliant Matte Tin(Sn) Lead Finish Band Indicates Cathode Electrical Characteristics Symbol TA = 25C unless otherwise noted Parameter Limits Test Condition Min Unit Max BV Breakdown Voltage IR=100A IR Reverse Leakage Current VR=25V 500 VF Forward Voltage IF=10mA 0.40 IF=50mA 0.65 TCBAT42, TCBAT42,
2 Pages, 88 KB, Original
