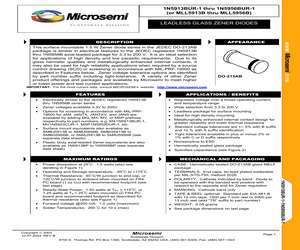

thru 1N5956B zener series Zener voltages available 3.3V to 200V Options for screening in accordance with MIL-PRF19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MSP prefixes respectively to part numbers, e.g. MX1N5913BUR-1, MV1N5923CUR-1, MSP1N5952DUR-1, etc. Surface mount equivalents also available as SMBJ5913B to SMBJ5956B, SMBG5913B to SMBG5956B, or SMAJ5913B to SMAJ5956B (see separate data sheets) Plastic body axial-leaded Zener equivalents are also available as 1N5913BP to 1N5956BP (see separate data sheet) MAXIMUM RATINGS * * * * * MECHANICAL AND PACKAGING Power dissipation at 25 C: 1.5 watts (also see derating in Figure 1). Operating and Storage temperature: -65C to +175C Thermal Resistance: 40 C/W junction to end cap, or 120C/W junction to ambient when mounted on FR4 PC board (1 oz Cu) with recommended footprint (see last page) Steady-State Power: 1.50 watts at TEC < 115oC, or 1.25 watts at TA = 25 C when mounted on FR4 PC board and recommended footprint as d

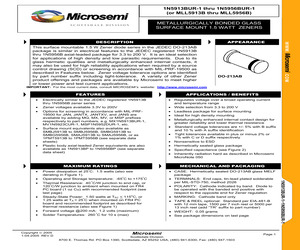

thru 1N5956B zener series Zener voltages available 3.3V to 200V Options for screening in accordance with MIL-PRF19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MSP prefixes respectively to part numbers, e.g. MX1N5913BUR-1, MV1N5923CUR-1, MSP1N5952DUR-1, etc. Surface mount equivalents also available as SMBJ5913B to SMBJ5956B, SMBG5913B to SMBG5956B, SMAJ5913B to SMAJ5956B, or as 1PMT5913B to 1PMT5956B (see separate data sheets) Plastic body axial-leaded Zener equivalents are also available as 1N5913BP to 1N5956BP (see separate data sheet) MAXIMUM RATINGS * * * * MECHANICAL AND PACKAGING Power dissipation at 25 C: 1.5 watts (also see derating in Figure 1). Operating and Storage temperature: -65C to +175C Thermal Resistance: 40 C/W junction to end cap, or 120C/W junction to ambient when mounted on FR4 PC board (1 oz Cu) with recommended footprint (see last page) Steady-State Power: 1.50 watts at TEC < 115oC, or 1.25 watts at TA = 25C when mounted on FR4 PC board and re

thru 1N5956B zener series Zener voltages available 3.3V to 200V Options for screening in accordance with MIL-PRF19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MSP prefixes respectively to part numbers, e.g. MX1N5913BUR-1, MV1N5923CUR-1, MSP1N5952DUR-1, etc. Surface mount equivalents also available as SMBJ5913B to SMBJ5956B, SMBG5913B to SMBG5956B, or SMAJ5913B to SMAJ5956B (see separate data sheets) Plastic body axial-leaded Zener equivalents are also available as 1N5913BP to 1N5956BP (see separate data sheet) MAXIMUM RATINGS * * * * * MECHANICAL AND PACKAGING Power dissipation at 25 C: 1.5 watts (also see derating in Figure 1). Operating and Storage temperature: -65C to +175C Thermal Resistance: 40 C/W junction to end cap, or 120C/W junction to ambient when mounted on FR4 PC board (1 oz Cu) with recommended footprint (see last page) Steady-State Power: 1.50 watts at TEC < 115oC, or 1.25 watts at TA = 25 C when mounted on FR4 PC board and recommended footprint as d

thru 1N5956B zener series Zener voltages available 3.3V to 200V Options for screening in accordance with MIL-PRF19500 for JAN, JANTX, JANTXV, and JANS are available by adding MQ, MX, MV, or MSP prefixes respectively to part numbers, e.g. MX1N5913BUR-1, MV1N5923CUR-1, MSP1N5952DUR-1, etc. Surface mount equivalents also available as SMBJ5913B to SMBJ5956B, SMBG5913B to SMBG5956B, or SMAJ5913B to SMAJ5956B (see separate data sheets) Plastic body axial-leaded Zener equivalents are also available as 1N5913BP to 1N5956BP (see separate data sheet) MAXIMUM RATINGS * * * * MECHANICAL AND PACKAGING Power dissipation at 25 C: 1.5 watts (also see derating in Figure 1). Operating and Storage temperature: -65C to +175C Thermal Resistance: 40 C/W junction to end cap, or 120C/W junction to ambient when mounted on FR4 PC board (1 oz Cu) with recommended footprint (see last page) Steady-State Power: 1.50 watts at TEC < 115oC, or 1.25 watts at TA = 25C when mounted on FR4 PC board and recommended footprint as desc

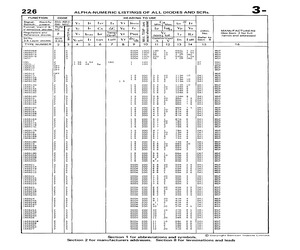

B z 500m 200 17.5 5 50m 3 041 MSP 1N5922C Zz iy 500m 200 7.5 2 50m 3 B41 MSP 1N5922D Zz Ss 500m 200 7.5 1 50m 3 041 MSP 1N5923 Zz Ss 500m 200 8.2 20 45m 3.5 041 MSP 1N5923A Zz Ss 500m 200 8.2 10 45m 3.5 041 MSP 1N5923B Zz Ss 500m 200 8.2 5 45m 3.5 041 MSP 1N5923C Zz Ss 500m 200 8.2 2 45m 3.5 041 MSP 1N5923D Zz Ss 500m 200 8.2 1 45m 3.5 B41 MSP 1N5924 Z Ss 500m 200 9.1 20 4im 4 041 MSP 1N5924A Zz Ss 500m 200 9.1 10 aim 4 D41 MSP 1N5924B Zz Ss 00m 200 wt 5 4im 4 B41 MSP 1N5924D Zz Ss 500m 200 9.1 1 4im 4 D41 MSP 1N5925 2 Ss 500m 200 10 20 37m 4.5 041 MSP 1N5925A z $ 500m 200 10 10 37m 4.5 |041 MSP 1N5925B Zz Ss 500m 200 10 5 37m 4.5 041 MSP 1N5925C Zz s 500m 200 [10 2 37m 4.5 |D41 MSP 1N5925D Zz S 500m 200 ]10 1 37m 4.5 |D41 MSP 1N5926 2 Ss 500m 200 11 20 34m .5 D4t MSP 1N5926AW Zz Ss 500m 200 11 10 34m 6.5 D4t MSP 1N5926B Zz S$ 500m 200 11 5 34m 5.5 D4i MSP 1N5926C Zz Ss 500m 200 11 2 34m 5.5 D41i MSP 1N5926D z $ 500m 200 [11 1 34m 5.5 |D41 MSP 1N5927 2 Ss 500m 200 12 20 31m 6.5 B41 MSP - - ae Cop
